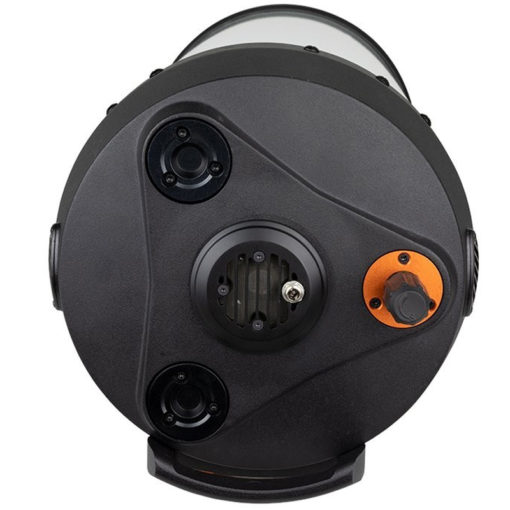

กล้องดูดาว 11″ ROWE-ACKERMANN SCHMIDT ASTROGRAPH (RASA 11) V2 OPTICAL TUBE ASSEMBLY (CGE DOVETAIL)
Original price was: ฿191,000.00.฿89,900.00Current price is: ฿89,900.00.
Specification
Specification
ประเภทกล้องดูดาว (type) :
Rowe-Ackermann Schmidt Astrograph
เส้นผ่านศูนย์กลาง (aperture) :
279mm (11″)
ความยาวโฟกัส(focal length) :
620mm (24.4″)
อัตราส่วนความยาวโฟกัส(focal ratio) :
f/2.2
Central obstruction diameter:
114mm (4.48″) (41% of aperture diameter)
ความสามารถรวบรวมแสง Light Gathering Power (Compared to human eye):
1588x
Resolution (Rayleigh):
0.49 arc seconds
Resolution (Dawes):
0.41 arc seconds
Image Circle:
43.3mm (1.7″) Ø , 4.0°
Useable field:
52mm (2.04″) Ø , 4.8° only minimal performance loss at edge of FOV
ช่วงความยาวแสง(Wavelength range):
400 – 700 nm
ขนาดจุด(Spot size):
< 4.4 μm RMS across FOV
เคลือบเลนส์ (Optical Coatings) :
Starbright XLT
Off-axis Illumination:
83% at 21mm (0.82″) off-axis
Optical Window:
68mm (2.67″) Ø
Back focus with included camera adapter:
55mm (2.16″)
Back focus from top of threaded collar:
72.8mm (2.86″)
วัสดุตัวกล้องดูดาว (Optical Tube):
Aluminum
ความยาวตัวกล้องดูดาว(Optical Tube Length):
838.2mm (33″)
โฟกัสเซอร์ (Focuser):
Ultra-Stable Focusing System
น้ำหนักตัวกล้อง(Optical Tube Weight):
43 lbs (19.5 kg)
คุณสมบัติอื่นๆ(Other Features):
Air-cooling system, integrated filter mount
อุปกรณ์ที่มาในชุด(Included items):
M42 camera adapter, C-thread camera adapter, fan battery pack
อุปกรณ์ที่มาในชุด(Dovetail):
CGE Dovetail Bar
การรับประกันสินค้า(warranty) :
2 ปี
